Beechcraft Denali
Overview
Exterior
Interior
Avionics
Specifications

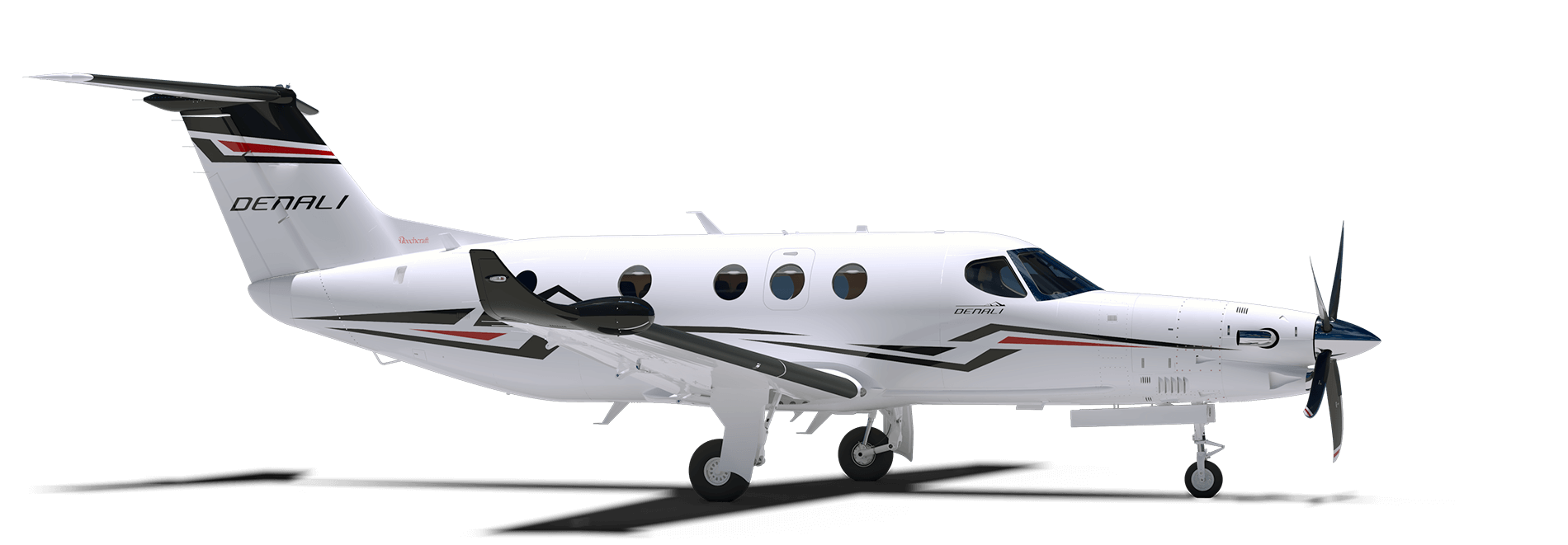

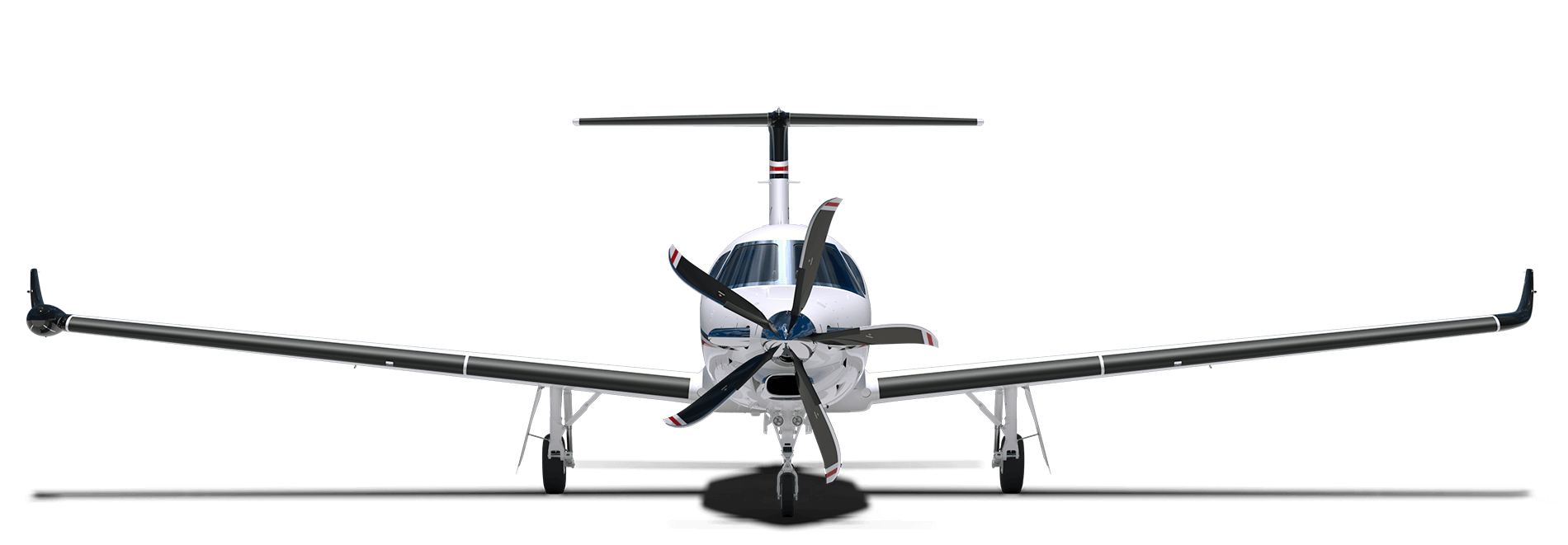

Beechcraft Denali
    • Maximum Range
    • 1,600 nm
    • Maximum Cruise Speed
    • 285 ktas
    • Maximum Occupants
    • 11
    • Useful Load
    • N/A
    • Takeoff Distance
    • 2,900 ft
Crafted with Purpose

The Beechcraft® Denali® turboprop is a breath of fresh air; it's a brand-new, high-performance, single-engine turboprop that changes everything. Designed with more performance, more versatility, lower operating costs, smarter cabin space and a superior service network, the Beechcraft® Denali® turboprop is the culmination of 90 years of innovation.

Interior configuration includes a six-seat executive interior complete with a refreshment center or a nine-seat commuter configuration. The Beechcraft® Denali® aircraft has the jet-inspired cabin to meet your every need.

The GE® Aerospace® Catalyst® powerplant features a dual channel FADEC and propeller control which provides easy jet-like power control in the flight deck as well as unrivaled operating efficiencies and engine protection.

The cockpit features Garmin® Emergency Autoland, the Garmin® G3000® advanced flight deck with touchscreen controls, Garmin® integrated autothrottle, Synthetic Vision Technology and more.

Journey

Interior 360°

divider

Explore the spacious cabin of the Beechcraft® Denali®.
Click and drag to move the camera.

Single-Engine Champions
Charter and Fractional Operators

divider

If you're looking for a single-engine turboprop aircraft with an unmatched cabin experience, request more information here.

Learn More

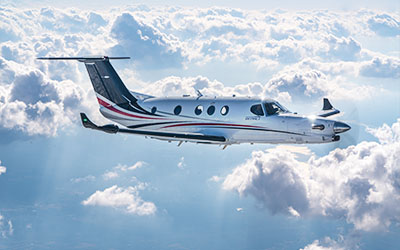

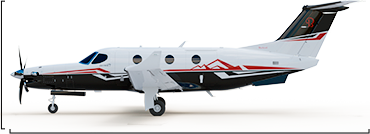

Exterior

Divider

It Doesn't Just Land, It Arrives in Style

Move your mouse over the image to pause.

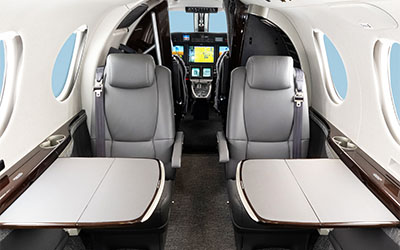

Interior

divider

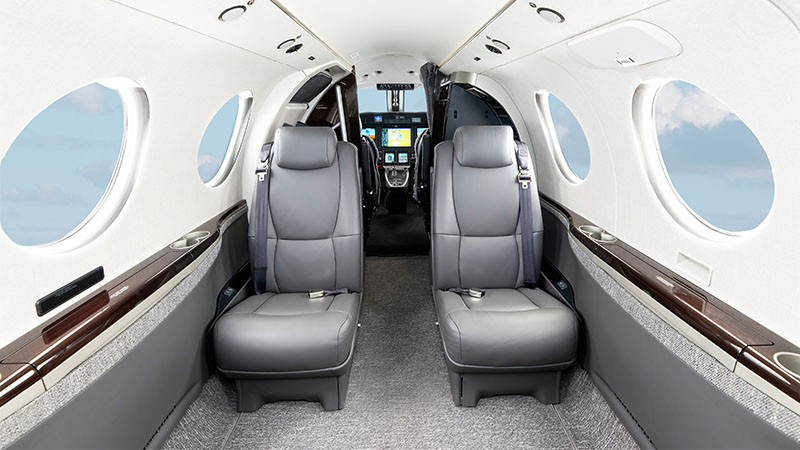

The View Inside the Cabin Rivals the One Outside of It

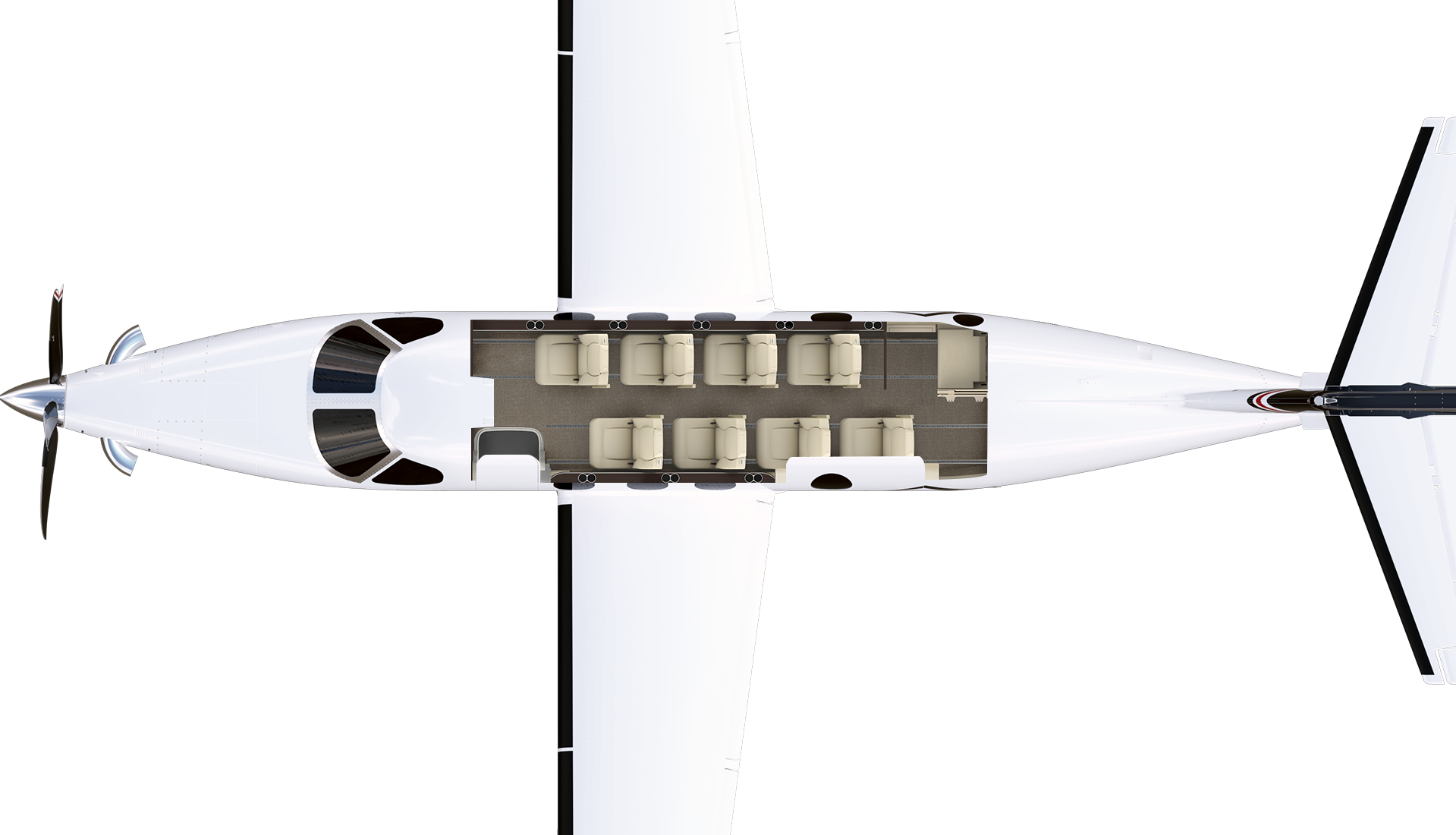

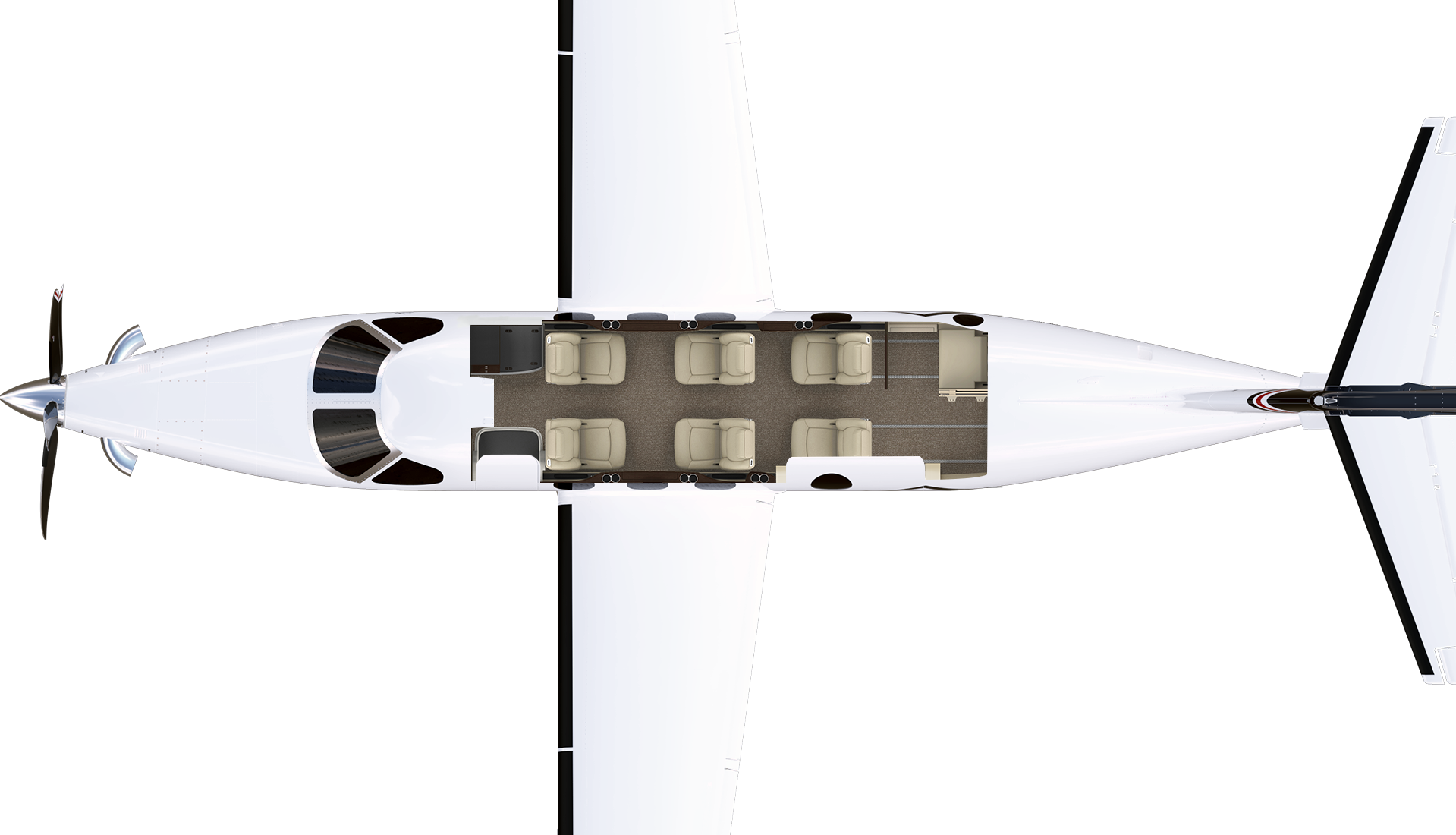

A comfortable six-seat executive layout or corporate shuttle seating up to nine passengers.

  • Executive
  • Commuter

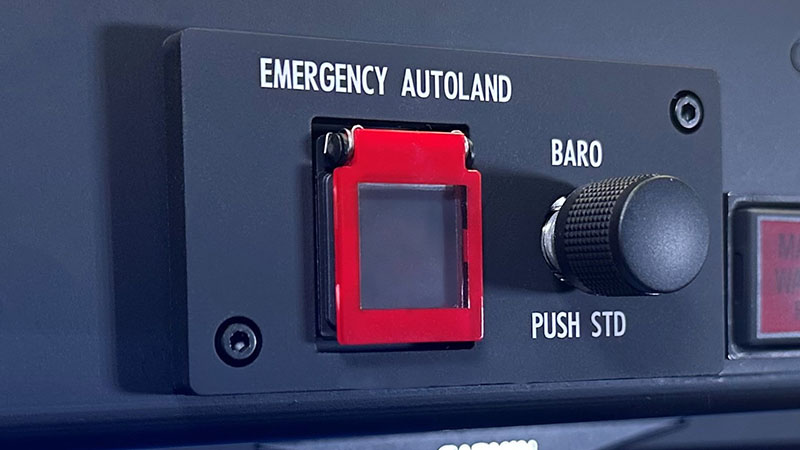

Garmin Emergency Autoland

Peace of mind for pilots and passengers.

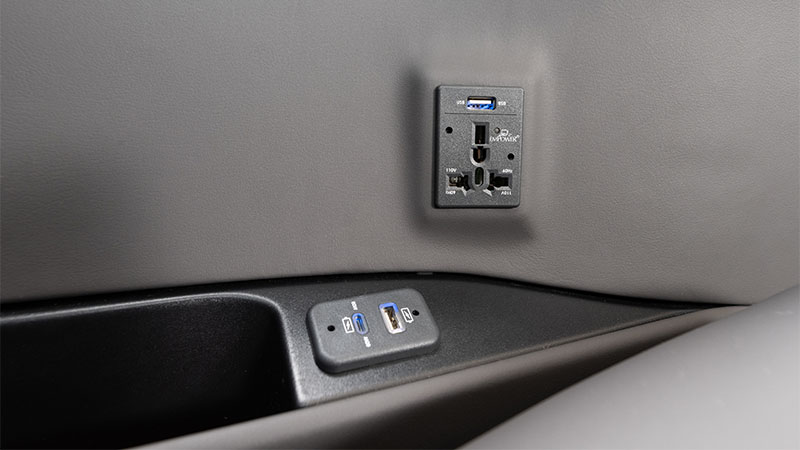

Power for Portables

The Denali® turboprop comes fully equipped with USB charging ports throughout the cabin.

More Head and Shoulder Room

Larger cross section offers more head and shoulder room than the competition.

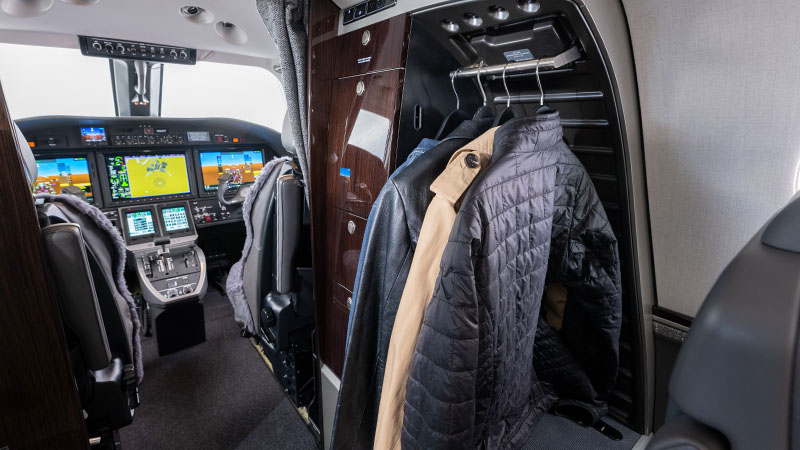

Refreshment and Storage Center

Flexible storage to meet your mission.

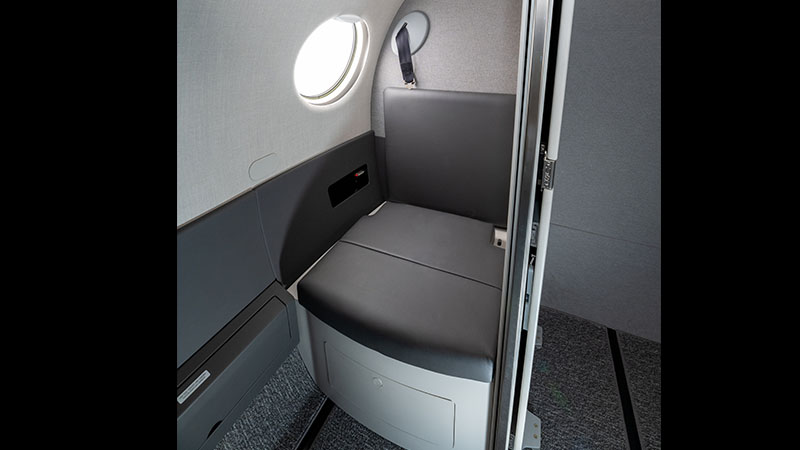

Optional Lavatory

The entire lavatory can be easily removed when needed to free up the aft cabin for more heavy cargo.

Avionics

Divider

Optimum Performance

An Aircraft as Intuitive as the People Who Fly It

The Denali® turboprop's flight deck takes full advantage of today's technology: Garmin® G3000® touchscreen controls and optional wireless connectivity. Add in the Denali® turboprop's full authority digital engine and propeller control along with the Garmin® integrated autothrottle, Garmin® Emergency Autoland and single-power lever, you have an easy flying experience unlike anything else. Roger that?

  • Three 14" Widescreen LCD Displays
  • Garmin® Emergency Autoland
  • Garmin® Integrated Autothrottle
  • Synthetic Vision Technology
  • Two Touchscreen Control Panels
  • Dual Garmin® FMS with Dual WAAS-enabled GPS Receivers for Navigation
  • Weather Avoidance Radar
  • Terrain Avoidance Warning System (TAWS-B)
  • Garmin® Traffic Collision and Avoidance System (TCAS I)
  • Dual Attitude Heading Reference System
  • Dual Air Data Computers
  • Digital Audio System

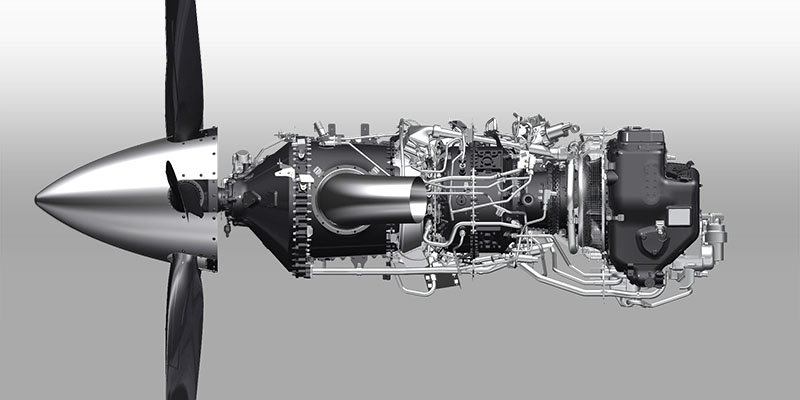

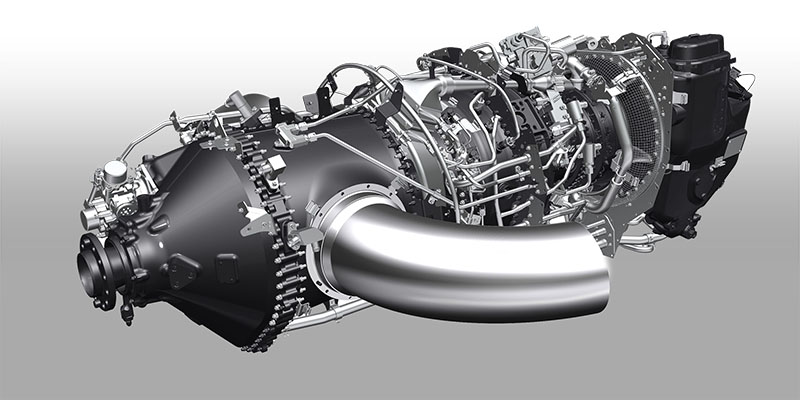

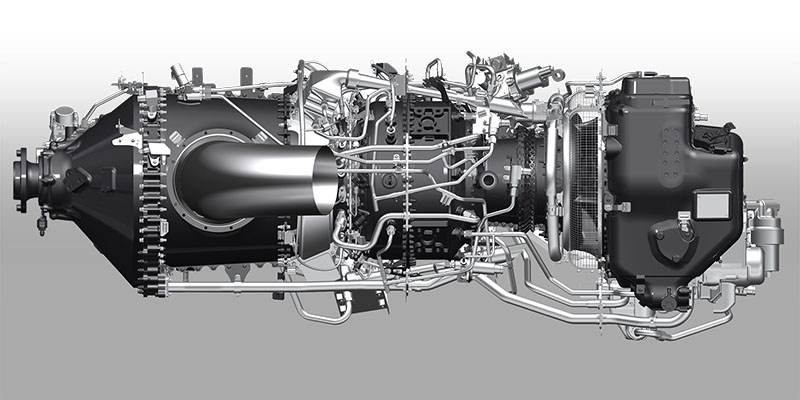

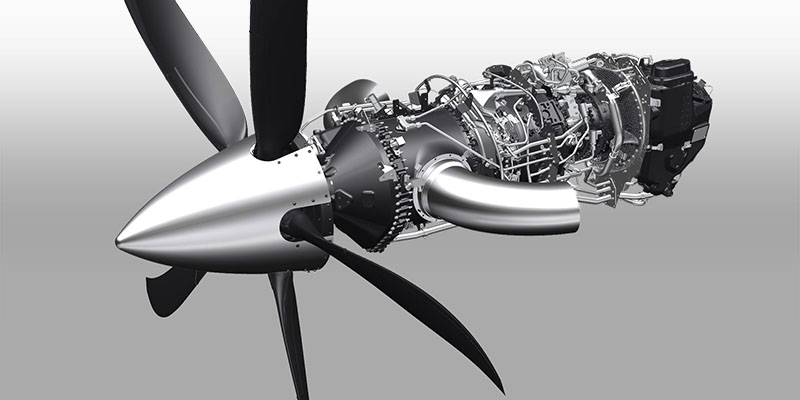

Meet the GE Catalyst Engine

divider

The Catalyst® utilizes technologies from GE® Aerospace® commercial engines proven over millions of flight hours. Its cutting-edge design incorporates proven technologies to provide efficiency, reliability, performance and simplified ownership.

Dispatch Reliability

As world leader in turbine engine manufacturing, GE® Aerospace® designed the Catalyst® engine to meet the latest certification standards and to provide excellent dispatch reliability.

Digital FADEC

GE® Aerospace® has more than 900 million flight hours of FADEC experience, and the Catalyst® is now introducing a greatly simplified jet-like flying experience for the Denali® turboprop.

Advanced Manufacturing

Additive technology in combination with advanced materials already used on GE® Aerospace® larger commercial engines is incorporated into the Catalyst® turboprop engine resulting in high efficiency and performance.

Innovation

Technologies and materials, such as multistage single-crystal turbine blades with internal cooling passages, help deliver superior efficiency, low emissions, improved performance and simplified ownership.

Specifications

Divider

Performance Without Compromise



Dimensions
Length 48 ft 9 in (14.9 m)
Height 15 ft 2 in (4.6 m)
Wingspan 54 ft 3 in (16.54 m)
Wing Area 286 sq ft (26.55 sq m)
Wheelbase 15 ft 1 in (4.60 m)
Tread 16 ft 6 in (5.03 m)
Cabin Interior
Height 58 in (1.5 m)
Width 63 in (1.60 m)
Length 16 ft 9 in (5.1 m)
Maximum Occupants 11
Baggage Capacity
Weight N/A
Volume 78 cu ft (2.21 cu m)

Weights
Maximum Ramp Weight N/A
Maximum Takeoff Weight N/A
Maximum Landing Weight N/A
Usable Fuel Weight N/A
Usable Fuel Volume N/A
Basic Empty Weight N/A
Useful Load N/A
Maximum Payload N/A
Full Fuel Payload N/A
Performance
Maximum Cruise Speed 285 ktas (528 km/h)
Maximum Range 1,600 nm (2,963 km)
Takeoff Distance 2,900 ft (884 m)
Ground Roll N/A
Landing Distance N/A
Ground Roll N/A
Maximum Operating Altitude 31,000 ft (9,449 m)
Maximum Climb Rate N/A
Maximum Limit Speed N/A
Stall Speed N/A
Powerplant
Manufacturer GE Aerospace
Model Catalyst 1300-CS1A
Power Rating 1,300 shp (969 kW)
Propeller Manufacturer McCauley
Description 5 blade composite, constant speed, fully reversing
