Citation

Latitude


  • 2,850 nm

  • 446 ktas

  • 9 people

  • 12,394 lb

  • 3,580 ft

Welcome to the next generation of business travel

Fly farther in the widest Citation in the sky. The Citation® Latitude® jet boasts the most spacious, most refined cabin environment in the midsize jet category. At 77 inches wide, six feet tall and more than 21 feet long with a flat floor, stand up cabin, the Latitude was built for comfort. We surrounded the Citation Latitude’s clean, contemporary design in an aircraft built to our rigorous standards.

To see for yourself, follow the Citation Latitude from design to first flight and beyond.
Follow The Latitude Journey

Exterior

Designed for impressive performance

Exterior ›

Interior

Stand tall in the widest Citation in the sky

Interior ›

Avionics

Take off with a touch on the Garmin G5000 avionics.

Avionics ›

Specifications

The dawn of a new aircraft

Specifications ›

Team Latitude

Cessna employs the best jet service engineers in the industry, grouped into model-specific teams. Our service engineers are expertly trained on each Citation jet. Team Latitude is dedicated exclusively to Citation Latitude owners and operators.

Model-specific teams are just one part of our robust aircraft service network.


Learn more about Citation Service

Citation Latitude Documentation

Latitude Electronic Brochure

View and download

Exterior

Turning heads in the sky

Interior

Fly farther in the widest Citation in the sky

Textron Aviation engineers made the Citation Latitude’s all-new fuselage generous in size, making it the widest Citation in the sky. Our interior designers made it look and feel even more spacious.

Available Configurations

Select Your Personal Touches

Gallery Interior Collection

These six sophisticated styling choices blend a unique palette of rich leathers, finely tailored fabrics, and polished wood veneers.

  • Mirror
  • Window
    Reveal
  • Sidewall Recess,
    AFT Bulkhead
  • Seats
  • Seat
    Accent
  • Headliner/
    PSU
  • Carpet
  • Mirror
  • AFT Bulkhead &
    Vanity Accent Pocket
  • Window
    Reveal
  • Sidewall &
    Sidewall Recess
  • Headliner/
    PSU
  • Carpet
  • Mirror
  • Sidewall
    Recess
  • Headliner/
    PSU
  • AFT
    Bulkhead
  • AFT Vanity
    Accent Pocket
  • Sidewall
  • AFT Window
    Reveal
  • Carpet
  • Mirror
  • Window
    Reveal
  • AFT
    Bulkhead
  • Sidewall
  • Headliner/
    PSU
  • Carpet
  • Headliner/PSU &
    AFT Window Reveal
  • Main Cabin
    Window Reveal
  • AFT
    Bulkhead
  • Seats
  • Sidewall
    Recess
  • Headliner/
    PSU
  • Carpet
  • Mirror
  • AFT
    Bulkhead
  • Headliner/
    PSU
  • Window
    Reveal
  • Sidewall, Sidewall Recess & AFT Vanity Accent Pocket
  • Carpet
  • Black Edition
  • Carnegie
  • Coco
  • Hawthorne
  • Hyde Park
  • Silver Frost
  • Black Edition Interior Collection

    A bold distinction of the Black Edition Interior commands attention with a strong, confident flow with handsome espresso toned veneers, luxurious satin black leather, with mesh textured embossing.

  • Carnegie Interior Collection

    Inspired by the storied history of the legendary theatre, the Carnegie Interior Collection marries rich chenilles, finely woven piques and a trio of smooth leathers.

  • Coco Interior Collection

    A modern take on traditional couture, the Coco Interior Collection gives a nod to the extraordinary warmth and luxury of a by-gone fashion era.

  • Hawthorne Interior Collection

    Inspired by the meticulously crafted, hand-bound volumes of nineteenth century literature, smooth ivory leather mingles with finely woven damasks.

  • Hyde Park Interior Collection

    Sleek sophisticated lines are inspired by deep blue silhouettes emerging from nautre's spectrum of silver mist.

  • Silver Edition Interior Collection

    A neutral palette of platinum blonde silks, luxury leathers, and plush textures, naturally marry with silver abstract patterns in a distinct, bold scale for a modern re-invention of nature.

Your Office in the Sky

The Latitude’s standard seating arrangement features a double side-facing couch for additional, more relaxed passenger space. The left-hand refreshment center and bar is well appointed to meet your beverage and catering needs.

Finally, a mid-size jet cabin you won’t have to crouch in. At six feet in height, you’ll stand freely and have plenty of space to stretch out as well, with more than 21 feet of cabin length and 77 inch width.

Ergonomic seats
Spacious interior
Double side-facing couch

In-cabin technology

Stay connected and productive-or entertained- with the Latitude’s state-of-the-art Clairity® cabin technology system. The system connects to the Latitude’s advanced avionics center to provide Internet and entertainment to passengers through seat-mounted, touch-screen displays or personal electronic devices.

Advanced seating

The seats provide added comfort from takeoff to landing. Although roomy, their slim contour and upholstery form a sleek profile, opening the space around them.

Stand-up Cabin
Well-appointed bar
Private lavatory

Avionics

Take off with a touch

Future-facing technology

Take off with a touch in the Citation Latitude- where the flight deck powered by Garmin G5000™ revolutionizes the way pilots access flight data. With just a few flicks of the finger, pilots can take command of the aircraft’s robust navigation, traffic, surveillance and communications systems. In addition, the integrated flight management system provides extensive navigation and flight-planning as well as en route, takeoff and landing performance information.

A simple touch

Pilots have three 14 inch landscape flight displays, which can function independently as a primary flight display or multifunction display. The displays also function in multi-pane mode, the center pedestal for MFD control and two additional panels control each PFD. Pilots can customize displays via the touch screen control panels, organizing and prioritizing the flight data presented.

Visually intuitive flight

The Garmin™ Synthetic Vision Technology™ system offers a virtual-reality view of terrain, obstacles, traffic and runways-everything beyond the widescreen

Using the terrain-altering database, pilots get a realistic picture of what lies beyond the nose of the Citation Latitude. Garmin SVT enhances pilots’ situational awareness by creating a virtual depiction of group and water features, obstacles and traffic, even in a solid IFR or nighttime VFR conditions.

    Standard Features
  • Flight Displays
  • Synthetic Vision Technology
  • Touch-screen Control Panels
  • Automatic Flight Control System
  • Attitude Heading Reference Systems (AHRS)
  • Integrated Avionics Units
  • Distance Measuring Equipment
  • Flight Management Systems
  • Weather Radar
  • Traffic Collision Avoidance System (TCAS II)
  • Terrain Awareness Warning System (TAWS)
  • Transponders with ADS-B Out Capability
  • Standby Instrumentation
  • Radio Altimeter
  • Cockpit Voice Recorder
  • Emergency Locator Transmitter
  • Maintenance Diagnostics
    Installed on Left-Hand Panel (pilot):
  • Touch-screen LCD Control Panel
  • Primary Flight Display (PFD)
  • Secondary PFD Controller
    Installed on Right-Hand Panel (copilot):
  • Touch-screen LCD Control Panel
  • Primary Flight Display (PFD)
  • Secondary PFD Controller
    Installed on Center Panel:
  • Multifunction Display (MFD)
  • Dual Touch-screen LCD Control Panels
  • Electronic Standby Flight Display (ESFD)
    Installed Beneath Glareshield:
  • Flight Guidance Panel (FGP)
    Installed on LH Tilt Panel:
  • Electrical Power Panel
    Installed on RH Tilt Panel:
  • Anti-Ice/De-Ice Panel
  • Landing Gear Control Panel
    Installed on Pedestal:
  • Engine Power Levers
  • Flaps Control
  • Switch in Throttle Lever
  • Pressurization Panel
  • Engine Control/Start Panel
  • Cockpit/Cabin Temperature Panel
  • Fuel, APU, and Hydraulics

Specifications

It’s the dawn of a brave new aircraft

Detailed Specifications

Performance data is based on the standard Latitude configuration, operating in International Standard Atmosphere (ISA) conditions with zero wind. Takeoff and landing field lengths are based on a level, hard surface and dry runway.

Actual performance will vary with factors such as environmental conditions, aircraft configuration and operational/ATC procedures.

Dimensions

  • Length
  • 62 ft 3 in (18.97 m)
  • Height
  • 20 ft 11 in (6.38 m)
  • Wingspan
  • 72 ft 4 in (22.05 m)
    Wing
  • Wing Area
  • Wing Sweep

  • 543 sq ft (50.4 sq m)
  • 12.7 degrees
    Wheelbase
  • 27 ft (8.23 m)
    Tread
  • 10 ft (3.05 m)
    Cabin Interior
  • Height
  • Width
  • Length

  • 72 in (1.83 m)
  • 77 in (1.96 m)
  • 21 ft 9 in (6.63 m)
  • Maximum Passengers
  • 9
    Baggage Capacity
  • Weight
  • Volume

  • 1,245 lb (564.7 kg)
  • 127 cu ft (3.6 cu m)
  • Single Pilot Certified
  • No

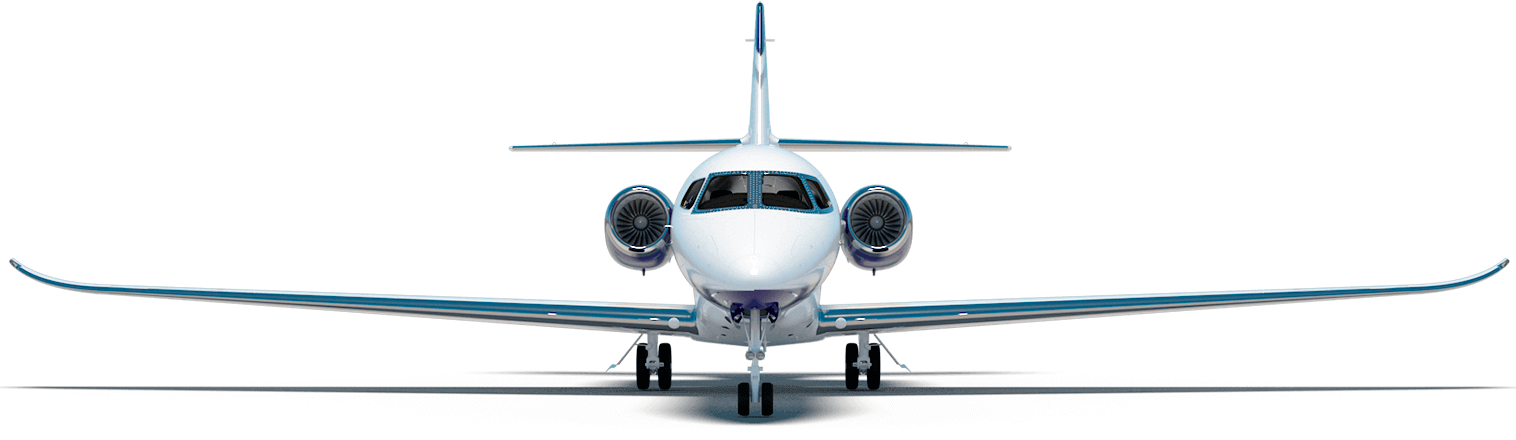

Wingspan – 72 ft 4 in (22.05 m)

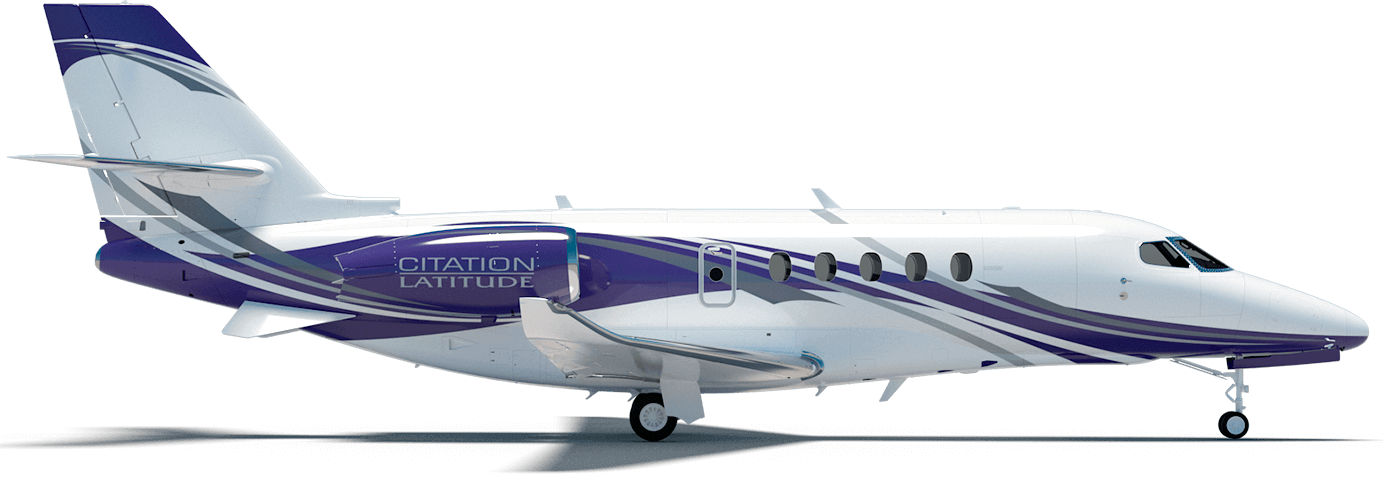

Height
20 ft 11 in (6.38 m)

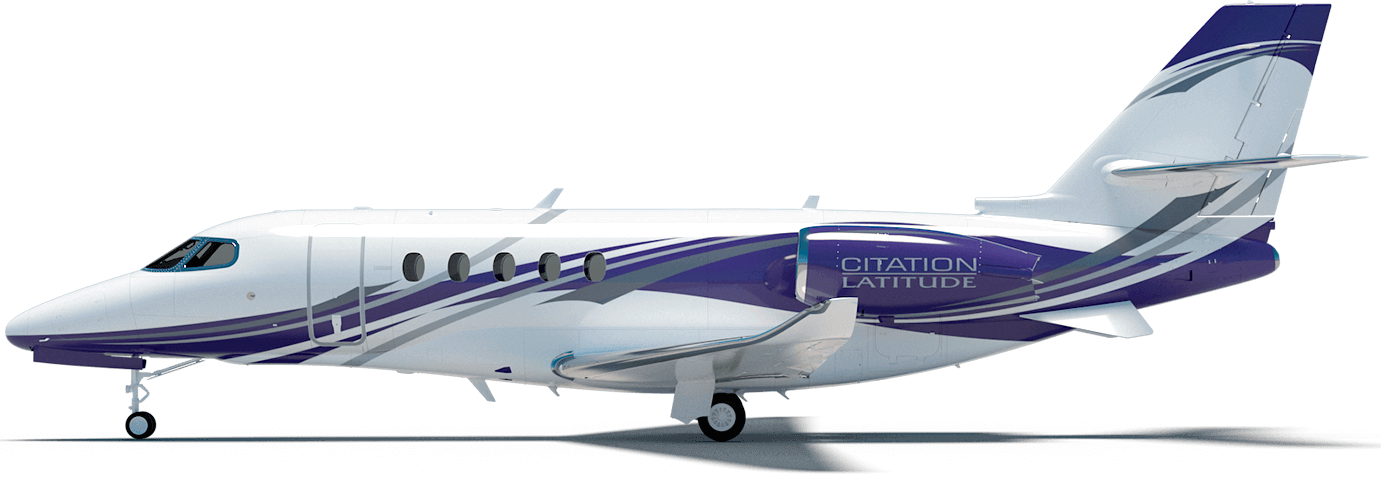

Length – 62 ft 3 in (18.97 m)

Weights

  • Maximum Ramp Weight
  • 31,050 lb (14,084 kg)
  • Maximum Takeoff Weight
  • 30,800 lb (13,971 kg)
  • Maximum Landing Weight
  • 27,575 lb (12,508 kg)
  • Maximum Zero Fuel Weight
  • 21,200 lb (9,616 kg)
    Usable Fuel Capacity
  • Weight
  • Volume

  • 11,394 lb (5,168 kg)
  • 1,700 gal (6,435 l)
  • Basic Operating Weight
  • 18,656 lb (8,462 kg)
  • Useful Load
  • 12,394 lb (5,622 kg)
  • Maximum Payload
  • 2,544 lb (1,154 kg)
  • Full Fuel Payload
  • 1,000 lb (454 kg)

Performance

  • Maximum Cruise Speed
  • 446 ktas (826 km/h)
  • Maximum Range
  • 2,850 nm (5,278 km)
  • Takeoff Field Length
  • 3,580 ft (1,091 m)
  • Landing Distance
  • 2,681 ft (817 m)
  • Maximum Operating Altitude
  • 45,000 ft (13,716 m)
  • Maximum Climb Rate
  • N/A
  • Maximum Limit Speed
  • 0.80 Mach (0.80 Mach)

Powerplant

Two Pratt & Whitney Canada™ PW306D1 turbofan engines are installed on the Citation Latitude. The engine is a twin-spool design with a damage-resistant wide chord fan. Behind the fan, four axial and one centrifugal compressor stages lead to a high-efficiency, low-emission, through-flow combustion and five turbine stages. Two-stage variable inlet guide vanes and bleed-off valves are controlled by the FADEC to optimize compressor and engine performance.

  • Manufacturer: Pratt & Whitney Canada
  • Model: (2) PW306D1
  • Thrust: 5,760 lb
  • Time Between Overhaul: 6,000 hrs
