*Performance data is based on standard conditions with zero wind. Range includes 1 pilot, 4 passengers at high speed cruise. All data is preliminary and subject to change.

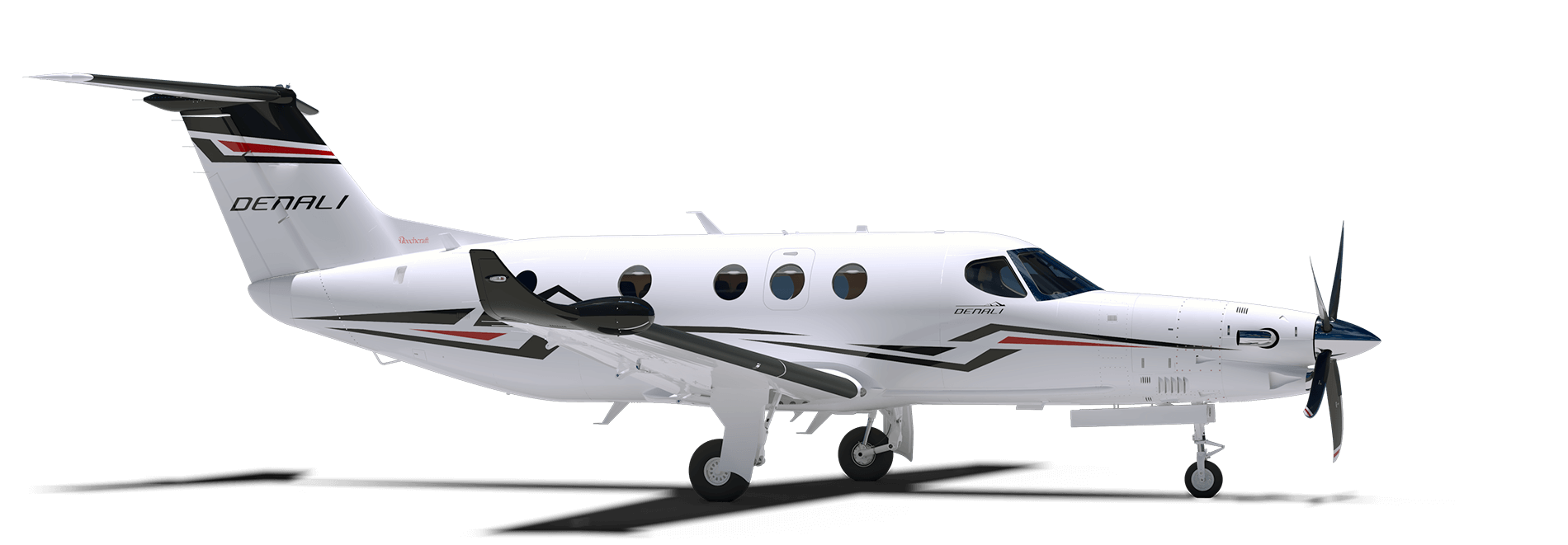

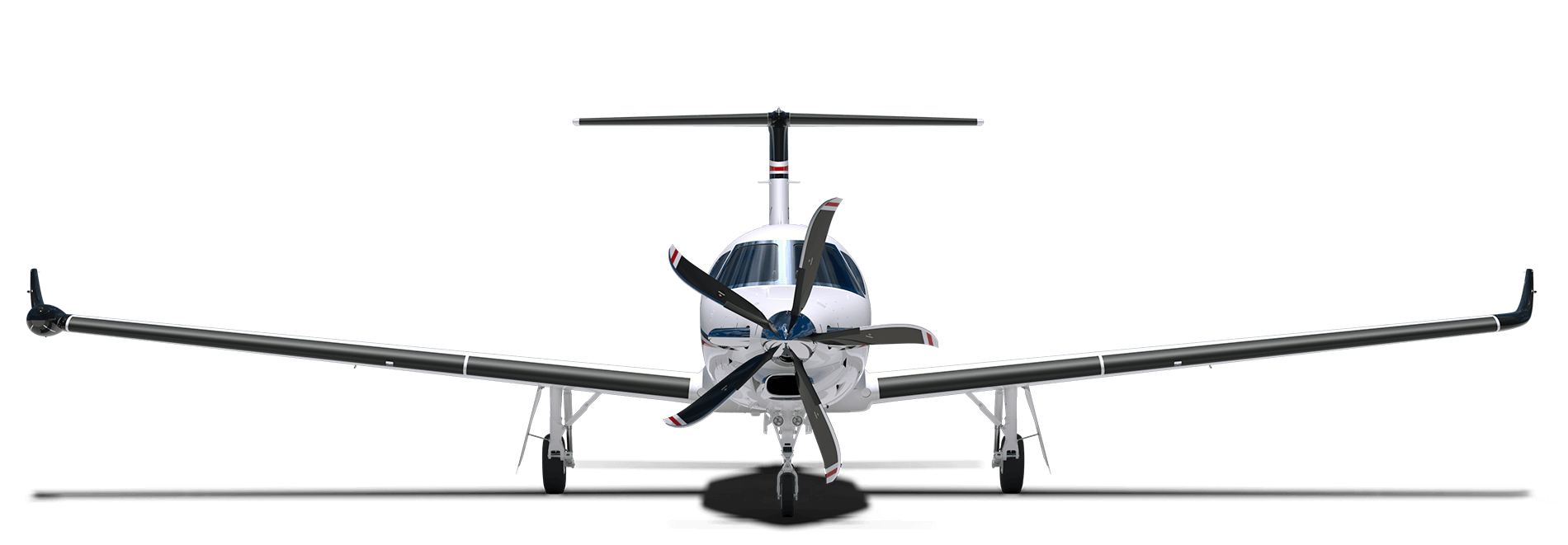

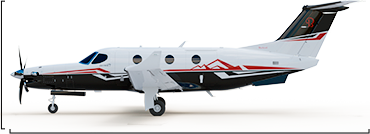

Dimensions
Length |
48 ft 9 in (14.9 m) |
Height |
15 ft 2 in (4.6 m) |
Wingspan |
54 ft 3 in (16.54 m) |
Wheelbase |
15 ft 1 in (4.60 m) |
Tread |
16 ft 6 in (5.03 m) |

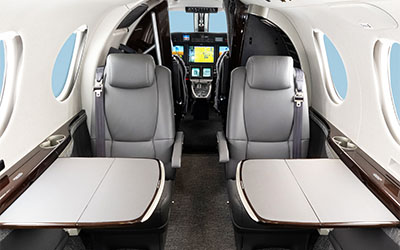

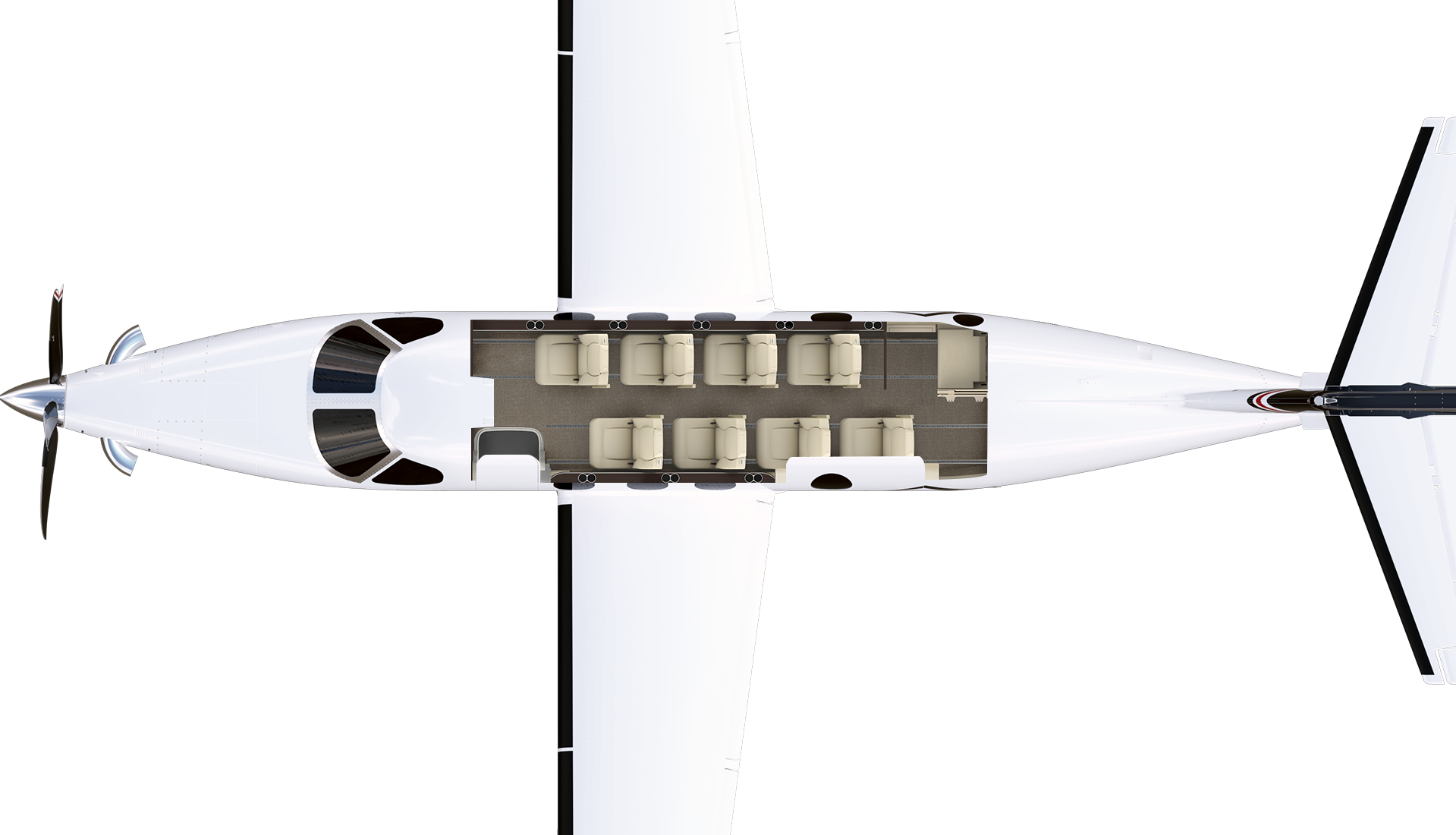

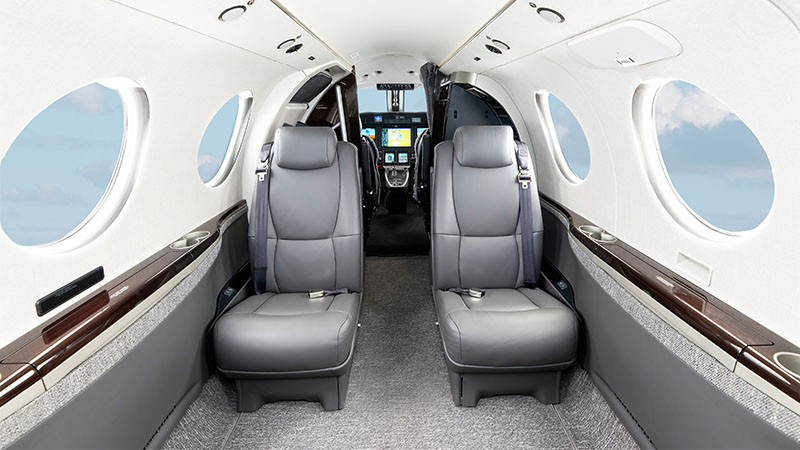

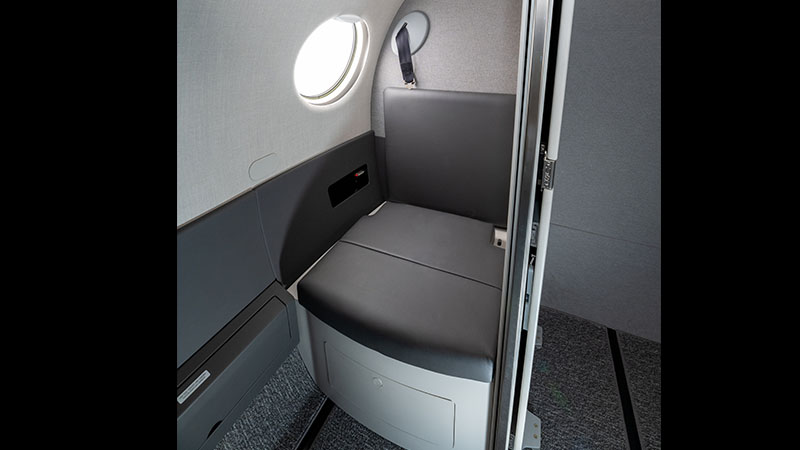

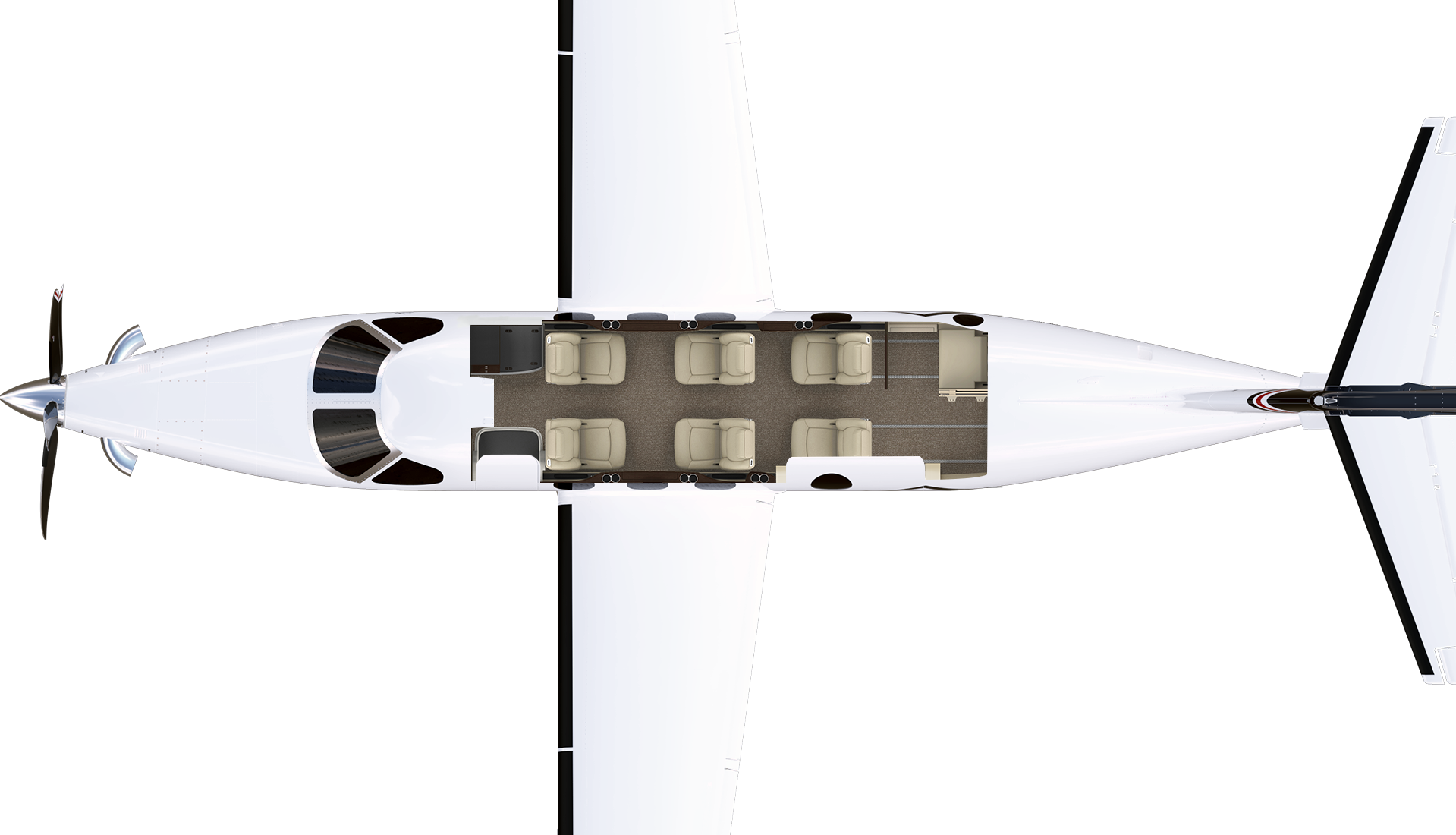

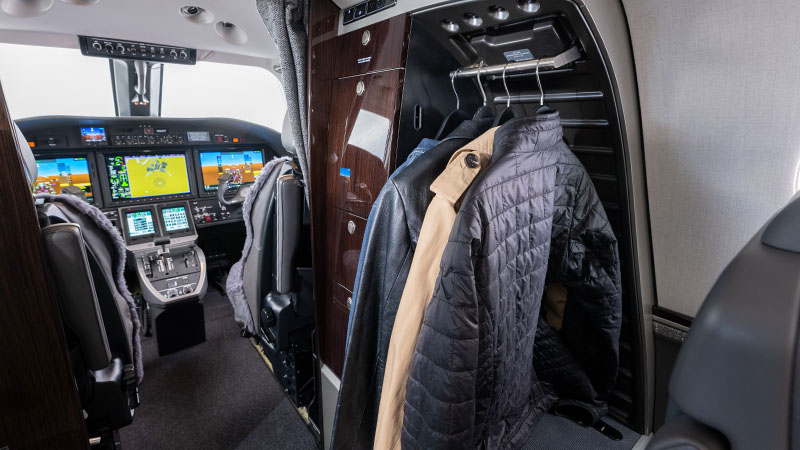

Cabin Interior
Height |
58 in (1.5 m) |
Width |
63 in (1.60 m) |
Length |
16 ft 9 in (5.1 m) |
Maximum Occupants |
8 - 11 |
Weights
Useful Load |
1,100 lb (499 kg) |
Full Fuel Payload |
1,100 lb (499 kg) |
Performance
Maximum Cruise Speed |
285 ktas (519 km/h) |
Maximum Range |
1,600 nm (2,963 km) |
Takeoff Distance
|
2,950 ft (899 m) |
Maximum Operating Altitude
|
31,000 ft (9,449 m) |

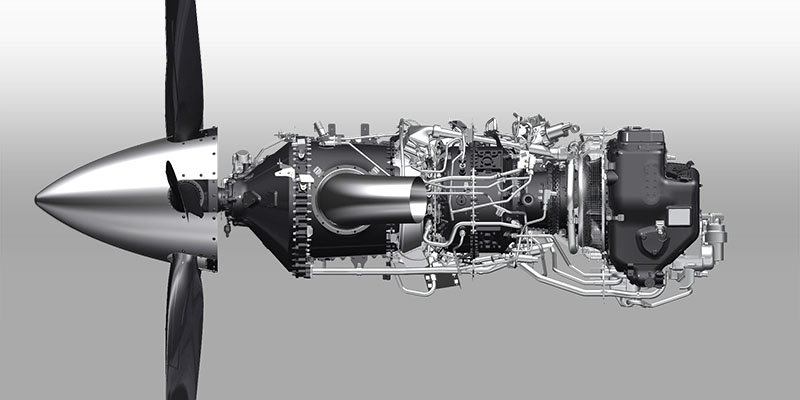

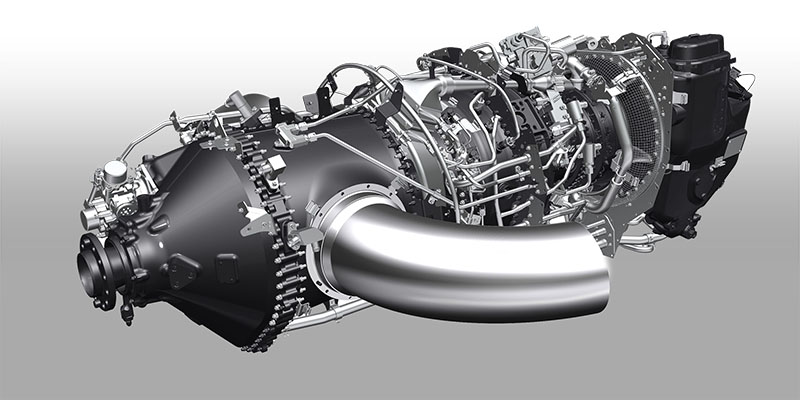

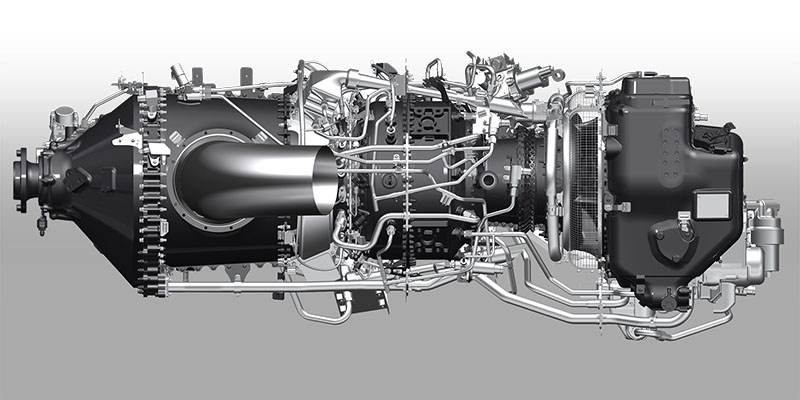

Powerplant
Manufacturer |
GE Aviation |
Model |
Catalyst |
Power Rating
|
1,300 shp (969 kW) |

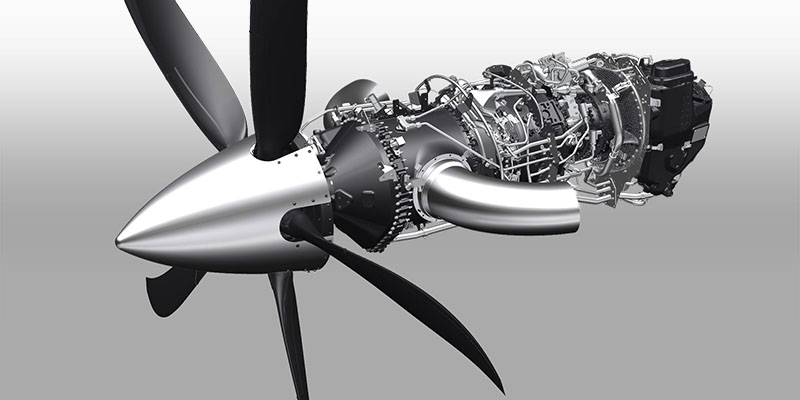

Propeller Manufacturer |
McCauley |
Description |
Blackmac Carbon, 5‑blade composite, digitally controlled with reversing |
