Standard interior with 6 Seats
Dimensions

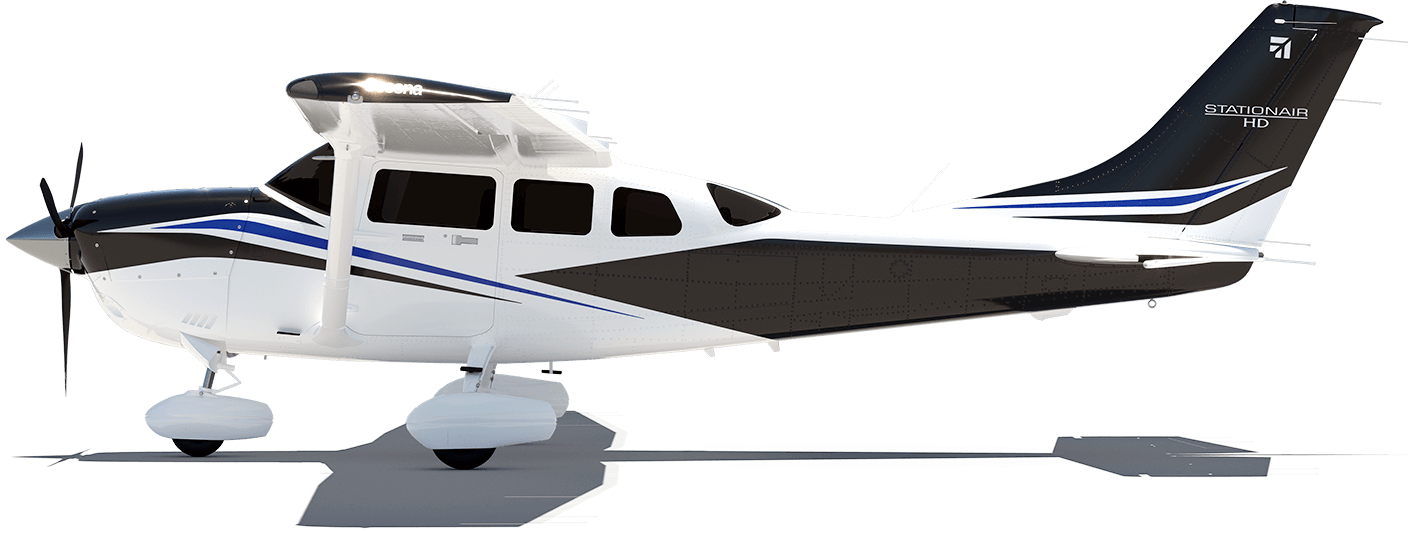

| Length |
28 ft 3 in (8.6 m) |

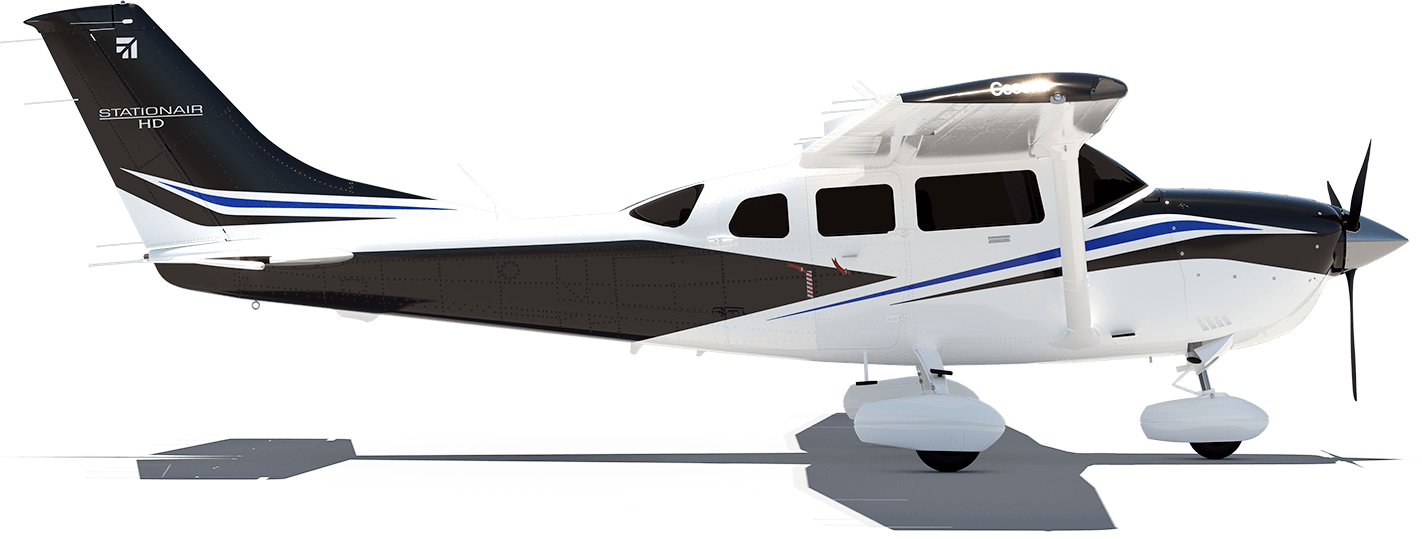

| Height |
9 ft 4 in (2.8 m) |

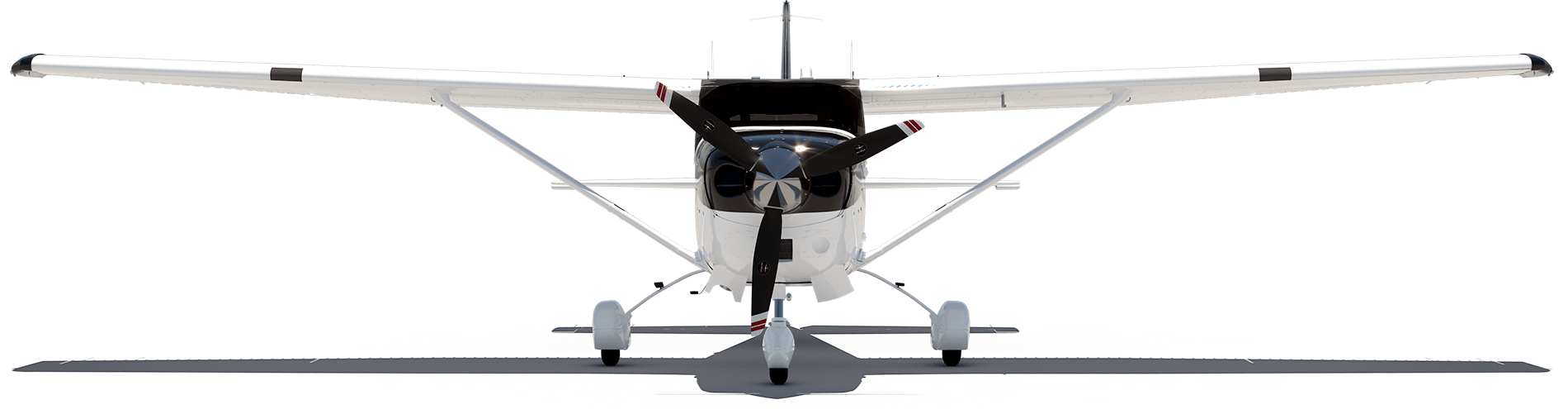

| Wingspan |
36 ft (10.97 m) |
| Wing Area |
174 sq ft (16.17 sq m) |
Cabin Interior
| Height |
50 in (1.3 m) |
| Width |
43 in (1.08 m) |
| Length |
12 ft 1 in (3.7 m) |
| Maximum Occupants |
6 |
Baggage Capacity
| Weight |
180 lb (82 kg) |
| Volume |
11 cu ft (0.31 cu m) |
Weights
| Maximum Ramp Weight |
3,806 lb (1,726 kg) |
| Maximum Takeoff Weight |
3,789 lb (1,719 kg) |
| Maximum Landing Weight |
3,600 lb (1,633 kg) |
| Usable Fuel Weight |
522 lb (237 kg) |
| Usable Fuel Volume |
87 gal (329 l) |
|
Basic Empty Weight
|
2,365 lb (1,073 kg) |
| Useful Load |
1,441 lb (654 kg) |
| Maximum Payload |
1,235 lb (560 kg) |
| Full Fuel Payload |
919 lb (417 kg) |
Performance
| Maximum Cruise Speed |
161 ktas (298 km/h) |
| Maximum Range |
703 nm (1,302 km) |
|
Takeoff Distance
|
1,970 ft (600 m) |
| Ground Roll |
1,060 ft (323 m) |
| Landing Distance |
1,395 ft (425 m) |
| Ground Roll |
735 ft (224 m) |
|
Service Ceiling
|
26,000 ft (7,925 m) |
| Maximum Climb Rate |
960 fpm (293 mpm) |
| Maximum Limit Speed |
182 kias (337 km/h) |
| Stall Speed |
57 kcas (106 km/h) |
Powerplant
| Manufacturer |
Lycoming |
| Model |
TIO-540-AJ1A |
|
Power Output
|
310 hp (310 hp) |
| Propeller Manufacturer |
McCauley |
| Description |
3 blade metal, constant speed |
Utility interior with pilot seat only
Dimensions
| Length |
28 ft 3 in (8.6 m) |
| Height |
9 ft 4 in (2.8 m) |
| Wingspan |
36 ft (10.97 m) |
| Wing Area |
174 sq ft (16.17 sq m) |
Cabin Interior
| Height |
50 in (1.3 m) |
| Width |
43 in (1.08 m) |
| Length |
12 ft 1 in (3.7 m) |
| Maximum Occupants |
1 |
Baggage Capacity
| Weight |
180 lb (82 kg) |
| Volume |
11 cu ft (0.31 cu m) |
Weights
| Maximum Ramp Weight |
3,806 lb (1,726 kg) |
| Maximum Takeoff Weight |
3,789 lb (1,719 kg) |
| Maximum Landing Weight |
3,600 lb (1,633 kg) |
| Usable Fuel Weight |
522 lb (237 kg) |
| Usable Fuel Volume |
87 gal (329 l) |
|
Basic Empty Weight
|
2,212 lb (1,003 kg) |
| Useful Load |
1,594 lb (723 kg) |
| Maximum Payload |
1,388 lb (630 kg) |
| Full Fuel Payload |
1,072 lb (486 kg) |
Performance
| Maximum Cruise Speed |
161 ktas (298 km/h) |
| Maximum Range |
703 nm (1,302 km) |
|
Takeoff Distance
|
1,970 ft (600 m) |
| Ground Roll |
1,060 ft (323 m) |
| Landing Distance |
1,395 ft (425 m) |
| Ground Roll |
735 ft (224 m) |
|
Service Ceiling
|
26,000 ft (7,925 m) |
| Maximum Climb Rate |
960 fpm (293 mpm) |
| Maximum Limit Speed |
182 kias (337 km/h) |
| Stall Speed |
57 kcas (106 km/h) |
Powerplant
| Manufacturer |
Lycoming |
| Model |
TIO-540-AJ1A |
|
Power Output
|
310 hp (310 hp) |
| Propeller Manufacturer |
McCauley |
| Description |
3 blade metal, constant speed |
